R32T Temperature Profiler

A 32-channel travelling thermal profiler that rides through the oven with your PCB, recording the full temperature curve for process optimization and SPC / CPK monitoring.

Pricing: Request a Quote

---

Key capabilities

• 32 channels capture full board thermal gradient in a single pass
• Wide -100 ~ 800 ℃ range covers reflow through high-temp firing
• 1,000 points/s USB download — minimal line interruption

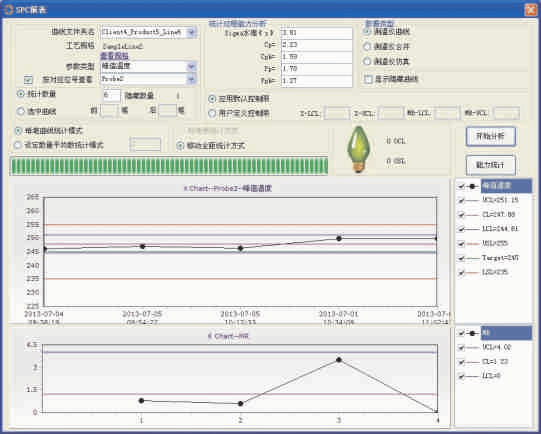

• Curve tolerance, SPC, CPK and PPI analytics built into ESA Profiler
• 10-minute charge supports 50 runs; 280-day standby

Channels	32 (6 / 8 / 10 / 12 / 16 / 20 / 24 also available)
Temperature range	-100 ~ 800 ℃
Accuracy	±0.5 ℃
Resolution	0.1 ℃
Sampling rate	0.1 ~ 400 s, adjustable
Data storage	16,000 points / channel (512,000 total)
Thermocouple	Type K
Interface	USB 2.0 — download speed 1,000 points / s
Battery	Rechargeable; 10-min charge = 50 tests; 280-day standby
Dimensions	264 × 60 × 20 mm
Software	ESA Profiler — curve tolerance, SPC, CPK, PPI analysis; CN / EN / 繁

Specifications per ESAMBER datasheet V3.5. Subject to change without notice.

Used across reflow and wave soldering, solar cell sintering, adhesive curing, kilns and furnaces, food processing, coating bake-out, automotive heat treatment, and metal / ceramic firing. The profiler travels with the PCB into the oven, records the temperature curve, and feeds ESA Profiler software for process optimization and SPC / CPK control.

Application areas

• Reflow & wave soldering
• Solar cell sintering
• Adhesive curing
• Kilns & furnaces
• Food processing
• Coating / paint bake-out
• Automotive heat treatment
• Metal & ceramic firing
